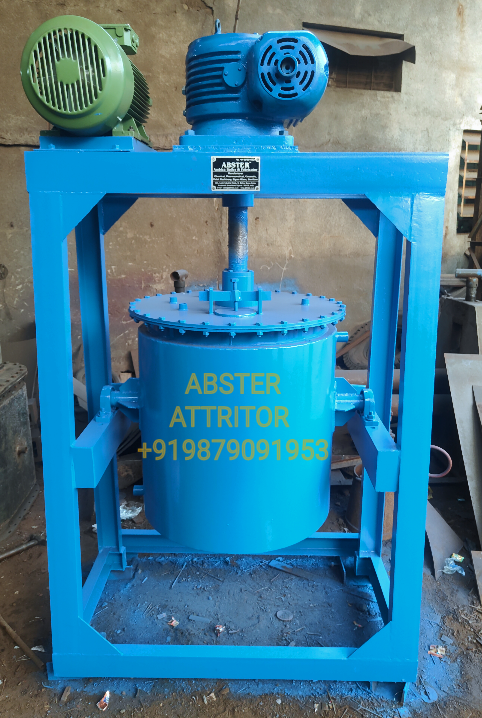

Pesticides Grinding Machine

Pesticides Grinding Machine

Wet Grinding Machine for Sc Pesticide
This  Pesticides Grinding Machine is used for wet grinding,can grind particle size to micron level.

Pesticide SC Bead Mill, with advanced structure, high efficiency, nanometer and micron final fineness.

Specification

● Easy to start, with low energy consumption rate and high grinding efficiency.

● Explosion-proof control components can be optional to meet reliable EX requirements.

● Advanced electric control system and fault alarm system.

● It can be equipped with different kinds of pump to match different materials (such as pneumatic diaphragm or gear pump).

● Unique double cartridge mechanical seal, to ensure long operation of shaft seal, maximum 8 -10 kg pressure

Pesticides Grinding Machine Advantages

Special Feeding System

Feeding pump with buffer tank to make sure feeding smoothly, buffer tank with pressure meter, If the grinding chamber is blocked, we can release the pressure from the buffer storage tank

Discharging System: New technology of Discharge method

Large Area centrifugal separator, the centrifugal wheel push away the grinding beads from the discharge sieve, make sure discharge smoothly, no blocking of beads

Special Mechanical Seal & Bearing Housing

● Special double cartridge mechanical seal, ensure long operation of shaft seal, maximum 8 -10 kg pressure;

● Special Bearing Housing, match mechanical seal well, one whole part, ensure the accuracy to below 0.03mm. Make sure stable working & extend the long life.

Cooling system

● High efficiency large area spiral ribbon type jacket water circulation chamber wall cooling

● Feeding pipe with jacket for cooling

● End cover corrugated cooling

● Cooling Tank for Mechanical Seal
