Stainless Steel Horizontal Ribbon Blender

Food grade stainless steel material
Dual screw structure- mixing the powder more effectively
U-Shape tank bottom, better for powder discharge and cleaning
Gearbox drive the auger shaft, low noise and long using life
Pneumatic cylinder to control the discharge exit
Heating and cooling functions can be realized
PLC controlled, equipped with weighing modular
Customized ribbon blender available

【Application Industry】：
Horizontal ribbon mixer is used for powder and powder mixing, powder with a small amount of liquid mixing, suitable for food, building, chemical, agricultural and other industries, such as food powder, dry mortar powder, fertilizer, seeds, spices, coffee powder, etc.

Model:
ABFRB-1000
Brand:
ABSTER

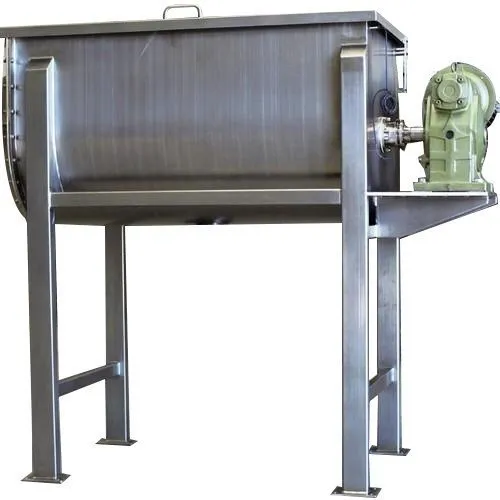

SS 316L Ribbon Blender

we will designing and manufacturing of s.s ribbon mixer machie and powder mixer machine as per our customers requirments. we will design 25kgs to 2000kgs mixer machine.Ribbon Mixer consists of horizontal U shape mixing vessel, drive system and ribbon agitator. The mixing element is combined with inner and outer double helical ribbon agitator. The outer ribbon moves materials into center direction and inner ribbon moves the materials in opposition direction to shape radially and laterally movement. Finally, the material will be discharged at center discharge valve. Ribbon Blender is an efficient and versatile blending machine for mixing of dry granules & powders homogeneously. Various materials can be mixed in ribbon mixer through a gentle way, especially in food material mixing. Furthermore, high speed chopper is also available to break some lumps during blending process.We are manufacturers of Double Cone Blender,We believe in quality and customer satisfaction.we will manufacturing all size of powder mixer machine, 25 kgs to 2000 kgs ribbon mixer machine.

Stainless Steel 316L Laboratory Small Ribbon Mixer Blender 10L-100L For Chemical

Product introduction

1) The laboratory small ribbon mixer is a special mixing equipment used for pilot research and development and small batch production. Compared with large industrial models, this type of machine is smaller in size and has lower processing capacity, but has the characteristics of simple structure, convenient operation and easy cleaning, which is very suitable for use in laboratories or small production workshops.

2) Laboratory small ribbon mixers are designed with single screw or twin screws, and the capacity is usually between 10 liters and 100 liters. The machine body can be made of transparent chemical glass to facilitate observation of the mixing process. Equipped with a precise speed regulating motor and heating system, it can meet the mixing needs of temperature-sensitive materials. In addition, different forms of feeding and discharging devices can be selected to meet different process requirements.

3) This type of machine is not only widely used in formula development and pilot production in the chemical, pharmaceutical and other industries, but also plays an important role in small batch mixing in the food, coating and other industries.

Ribbon Mixer Specifications

Model	ABFRB-100	ABFRB–300	ABFRB-500	ABFRB-1000	ABFRB-1500	ABFRB-2000	ABFRB-3000	ABFRB-4000	ABFRB-5000
Full volume(LT)	100L	300L	500L	1000L	1500L	2000L	3000L	4000L	5000L
Load Coefficient	0.5-0.8
Motor Power(kw)	3	4	7.5	11	11	15	18.5	22	22
Overall dimension(mm)	1190740770	2030630980	23207301130	28009201320	3180×1020×1550	3310×1120×1640	375012901820	422014001990	422015002100
Weight(kg)	330	720	980	1700	1800	2100	3000	3980	4620

Ribbon Blender Application

1. Chemical industry
New formula development and pilot production, mixing of chemicals such as catalysts and additives, and formula adjustment of chemical products such as polymers and resins
2. Pharmaceutical industry
Development and pilot production of new drug formulas, mixing and granulation of APIs and excipients, and mixing of capsules, powders and other drugs
3. Food industry
New product formula development and trial production, mixing of additives, spices, etc., and mixing and processing of foods such as flour and candy
4. Paint industry
Development and adjustment of formulas of paints, inks, etc., and mixing of raw materials such as pigments and fillers
5. Laboratory research
Material performance testing and analysis, exploration and optimization of new mixing processes.

F.A.Q.

1. Manufacturer or trading company?

We are a manufacturer with strict production standards in India.

2. Where is your company?

Our company is located in Abster — Powder Equipment Industry Belt.

3. About your company’s visit?

We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.

4. What is the main market for your company?

Asia and Africa, Australia, America, Europe.

5. Can you provide customized products?

Yes, we have professional engineers to meet your special design needs, so we can provide customized products.

6. What is your delivery time?

It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.

7. About the product warranty?

Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.

8. What are the payment terms?

T/T, L/C, etc.
